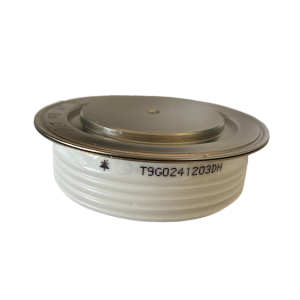

IP147-3178 diode 75*27MM Fast Soft Recovery Diode
| Parameter | Symbol | Min | Max. | Typ | Units | Conditions |
| Average value of on-state current | IF(AV) | 1495 | A | Sinewave,180o conduction,Tc =55oC | ||
| RMS value of on-state current | IFRMS | 2984 | A | Nominal value | ||
| Peak one cycle surge (non repetitive) current | IFSM |
19600 |
A | 10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 125 oC | ||
| I square t | I2t | 1.9×106 | A2s | 10 msec | ||
| Peak on-state voltage | VFM | 2.30 | V | IFM = 4500 A; Duty cycle £ 0.01%; Tjmax | ||
| Reverse Recovery Current (4) | IRM(REC) | 175 | A | IFM = 1000 A; dI/dt = 60 A/ms; Tjmax | ||
| Reverse Recovery Charge (4) | Qrr | 950 | mC | IFM = 1000 A; dI/dt = 60 A/ms; Tjmax | ||
| Reverse Recovery Time (4) | tRR | * | 4.9 | ms |
